LX-72-LY-21
- Item No.KMS03
- CategoryElectric Dirt Bikes
- Vehicle size1840*685*1120MM
- Vehicle base1150MM
- Seat cushion height860MM-870MM
- Min. gruond clearance370MM
- Max. Speed60-65km/h
- Range60KM
- Climbing degree≥65°
- Max. Loading capacity100KG
Product Detail

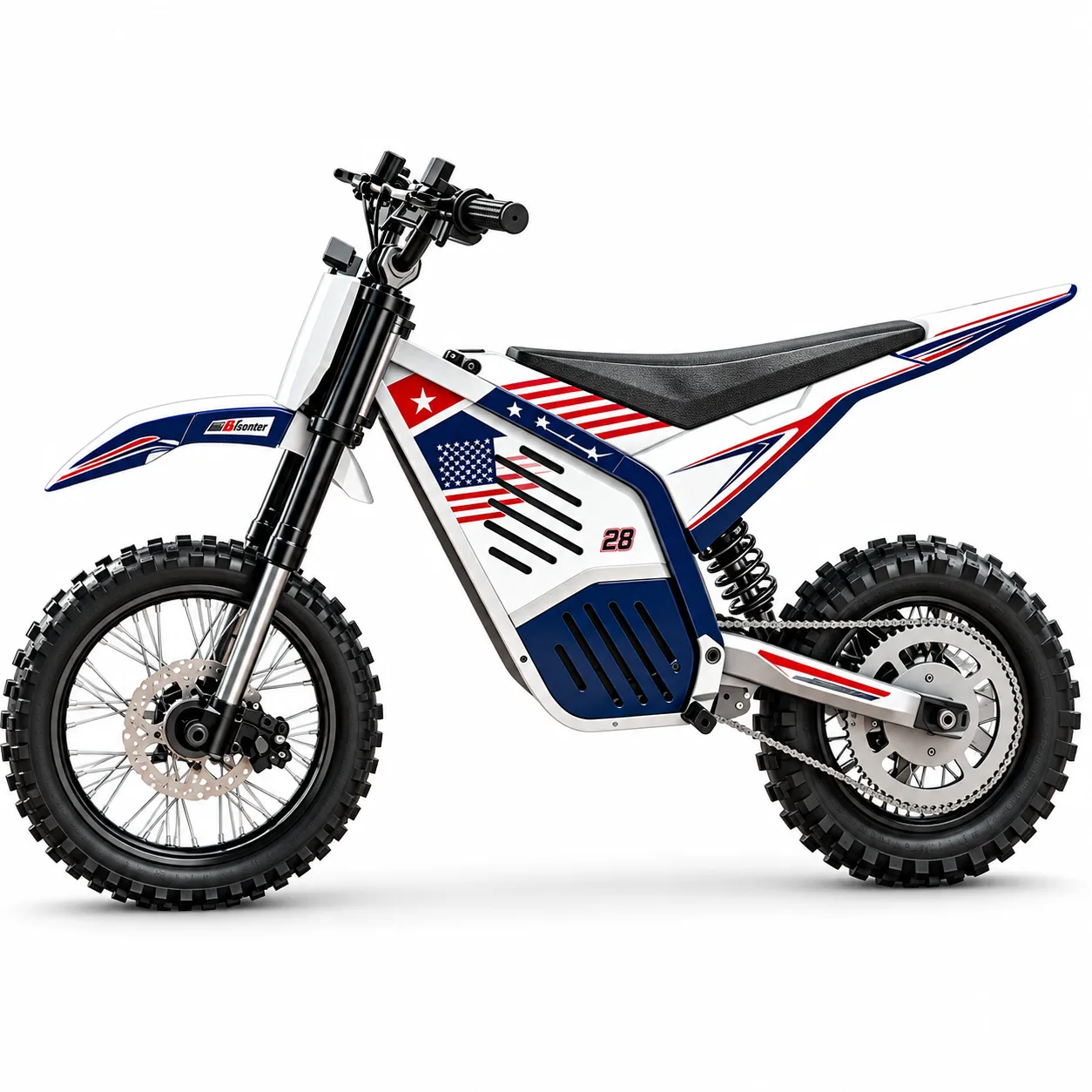

LX-72-LY-21 Electric Off-Road Vehicle
Item No.: KMS03
Manufactured by Yongkang Komoshi Technology Co., Ltd., the LX-72-LY-21 is a high-performance electric off-road vehicle designed for demanding terrains. With a powerful mid-drive motor, long-range battery, and robust construction, it delivers reliable performance for outdoor adventures.
Key Features
- Mid-drive motor with 2200W rated power and 6500W peak power
- 72V25AH lithium battery (5C) with 1800WH capacity
- Max speed of 60-65km/h and range up to 60km
- Climbing capability of ≥65°
- Off-road tires and durable iron frame with powder coating
- LED left-mounted display and hydraulic shock absorption
Complete Technical Specifications
| Feature / Parameter | Specification Details |
|---|---|
| Vehicle Size | 1840*685*1120MM |
| Vehicle Base | 1150MM |
| Seat Cushion Height | 860MM-870MM |
| Min. Ground Clearance | 370MM |
| Max. Speed | 60-65km/h |
| Range | 60KM |
| Climbing Degree | ≥65° |
| Max. Loading Capacity | 100KG |
| Tyre Configuration | Off-road tires |
| Battery Type | 72V25AH domestic ternary lithium battery 5C |
| Battery Capacity | 1800WH |
| Battery Life Cycle | 500 cycles (remaining capacity ≥80%) |
| Motor Type | Mid-drive motor |
| Rated Motor Power | 2200W |
| Maximum Power | 6500W |
| Controller | 36-88V80A |
| Charger | 5A charger (CE certified) |
| Charging Time | 6h |
| Display | LED left-mounted display |
| Headlight | No headlight |
| Frame | Iron frame |
| Surface Treatment | Powder spray |
| Tyre Size Front/Rear | Front 70/100-19 / Rear 70/100-17 |
| Front Shock Absorption | Non-adjustable damping suspension (inverted aluminum alloy front fork) |
| Back Shock Absorption | Domestic hydraulic shock absorber (non-adjustable) |
For more information about the LX-72-LY-21 or to discuss your specific requirements, please contact Yongkang Komoshi Technology Co., Ltd.
