T2-72-MY-21
- Item No.KMS02
- CategoryElectric Dirt Bikes
- Vehicle size1630*685*1120MM
- Vehicle base1150MM
- Seat cushion height860MM-870MM
- Min. gruond clearance370MM
- Max. Speed80-90km/h
- Range55KM
- Climbing degree≥65°
- Ratedloading Capacity120KG
Product Detail

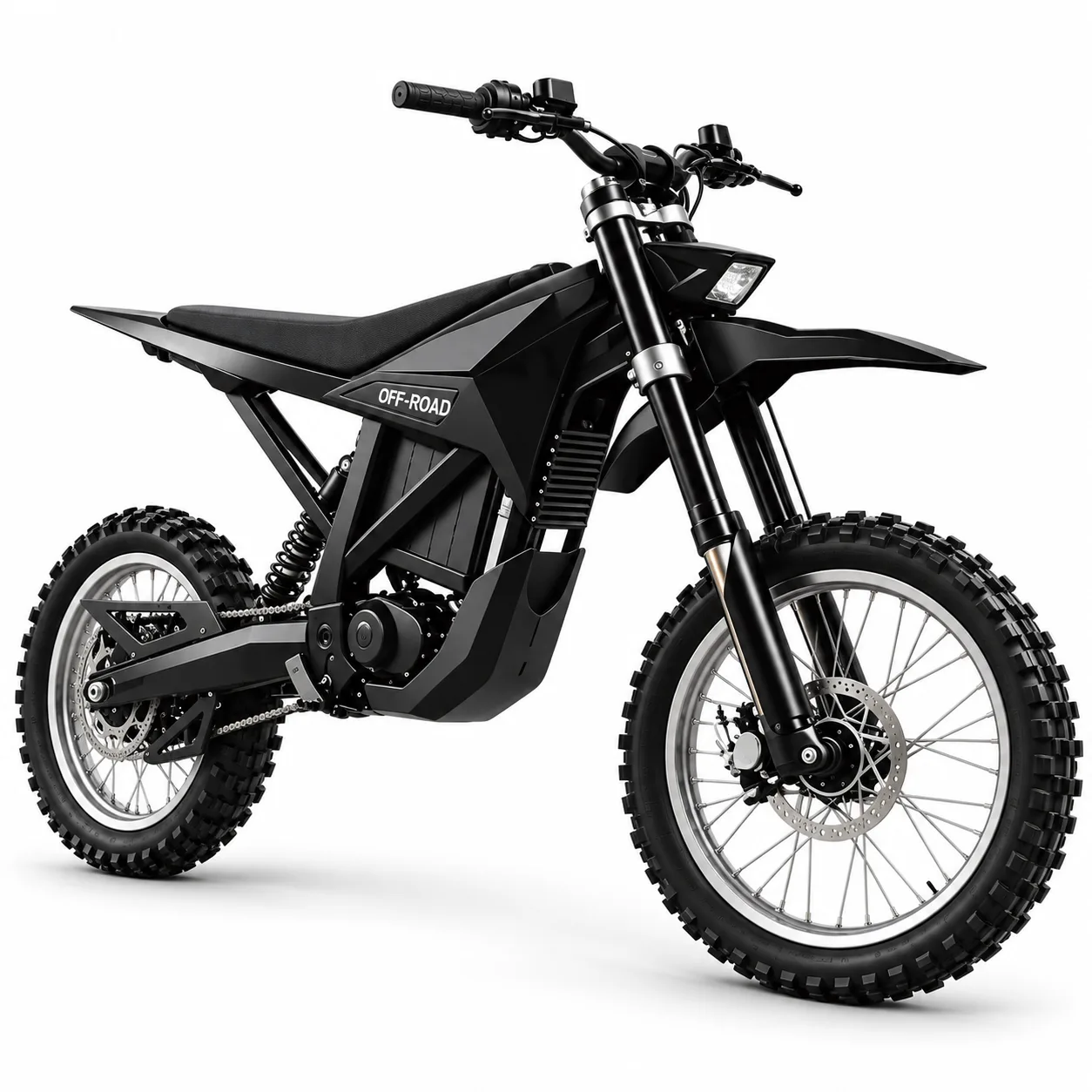

Product Overview: T2-72-MY-21 Electric Off-Road Vehicle
The T2-72-MY-21 (Item No. KMS02) is a high-performance electric off-road vehicle engineered for demanding terrains. With a powerful mid-drive motor, long-range battery, and robust construction, it delivers reliable performance for outdoor adventures and utility applications.
Key Features
- Powerful Mid-Drive Motor: Rated at 2500W with a peak of 7500W, providing strong torque and climbing capability.
- Long-Range Battery: 72V 25Ah ternary lithium battery (5C) with 1800Wh capacity, offering up to 55km range.
- High Climbing Ability: Conquers inclines of 65° or more.
- Durable Construction: Iron frame with powder-coated finish for corrosion resistance.
- Off-Road Ready: Equipped with off-road tires and a minimum ground clearance of 370mm.
- Comfortable Ride: Seat cushion height of 860-870mm and hydraulic rear shock absorption.
Technical Specifications
| Parameter | Specification |
|---|---|
| Vehicle Size | 1630 × 685 × 1120 mm |
| Vehicle Base | 1150 mm |
| Seat Cushion Height | 860–870 mm |
| Min. Ground Clearance | 370 mm |
| Max. Speed | 80–90 km/h |
| Range | 55 km |
| Climbing Degree | ≥65° |
| Rated Loading Capacity | 120 kg |
| Tyre Configuration | Off-road tires |
| Max. Loading Capacity | 150 kg |
| Battery Type | 72V 25Ah ternary lithium (5C) |
| Battery Capacity | 1800 Wh |
| Battery Life Cycle | 500 cycles (remaining capacity ≥80%) |
| Motor Type | Mid-drive motor |
| Rated Motor Power | 2500 W (Quanshun motor) |
| Maximum Power | 7500 W |
| Controller | 36–88V 80A |
| Charger | 5A battery charger (CE certified) |
| Charger Time | 6 hours (with 5A charger) |
| Display | LED center-mounted display |
| Headlight | Front headlight |
| Frame | Iron frame |
| Surface Treatment | Powder spray |
| Tyre Size Front/Rear | Front: 70/100-17 / Rear: 90/100-14 |
| Front Shock Absorption | Non-adjustable damping suspension (inverted aluminum alloy front fork) |
| Back Shock Absorption | Domestic hydraulic shock absorber (non-adjustable) |
Applications
Ideal for off-road recreation, trail riding, and utility transport in challenging environments. The T2-72-MY-21 combines power, durability, and comfort for an exceptional riding experience.
Note: Specifications are subject to change without notice. Please contact the manufacturer for detailed technical documentation.
