T1-60-MY-21
- Item No.KMS01
- CategoryElectric Dirt Bikes
- Vehicle size1630*685*1120MM
- Vehicle base1150MM
- Seat cushion height860MM-870MM
- Min. gruond clearance370MM
- Max. Speed65-70km/h
- Range50KM
- Climbing degree≥65°
- Max. Loading capacity120KG

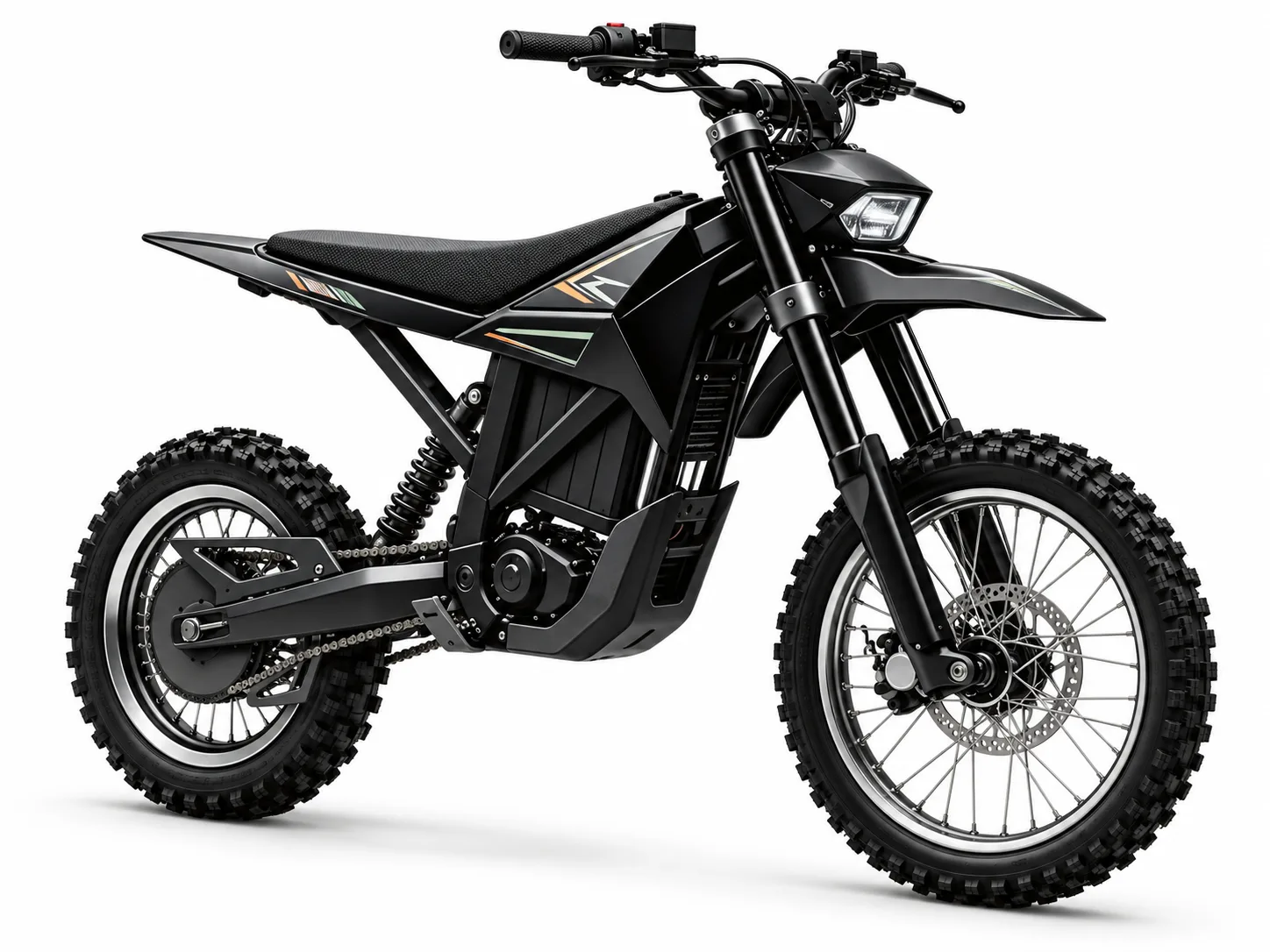

T1-60-MY-21 Off-Road Electric Motorcycle
Item No.: KMS01
Manufactured by Yongkang Komoshi Technology Co., Ltd., the T1-60-MY-21 is a high-performance electric off-road motorcycle designed for demanding terrains. Combining a robust aluminum alloy frame with advanced electric components, it delivers impressive power, agility, and durability.
Key Features
- Powerful 1500W rated motor (peak 4500W) for steep climbs and rapid acceleration
- LG 60V24Ah lithium battery (1440Wh) with 700-cycle life (≥80% capacity)
- Lightweight aluminum alloy frame with powder-coated finish
- Adjustable inverted front shock absorption for customized damping
- Off-road tires (front 70/100-17, rear 90/100-14) for superior traction
- Built-in Bluetooth speaker and LED center-mounted display
- CE-certified 5A charger for safe and efficient charging
Complete Technical Specifications
| Feature / Parameter | Specification Details |
|---|---|
| Vehicle Size | 1630 × 685 × 1120 mm |
| Vehicle Base | 1150 mm |
| Seat Cushion Height | 860–870 mm |
| Min. Ground Clearance | 370 mm |
| Max. Speed | 65–70 km/h |
| Range | 50 km |
| Climbing Degree | ≥65° |
| Max. Loading Capacity | 120 kg |
| Tyre Configuration | Off-road tires |
| Battery Type | LG Cells 60V24Ah lithium (ternary) |
| Battery Capacity | 1440 Wh |
| Battery Life Cycle | 700 cycles (remaining capacity ≥80%) |

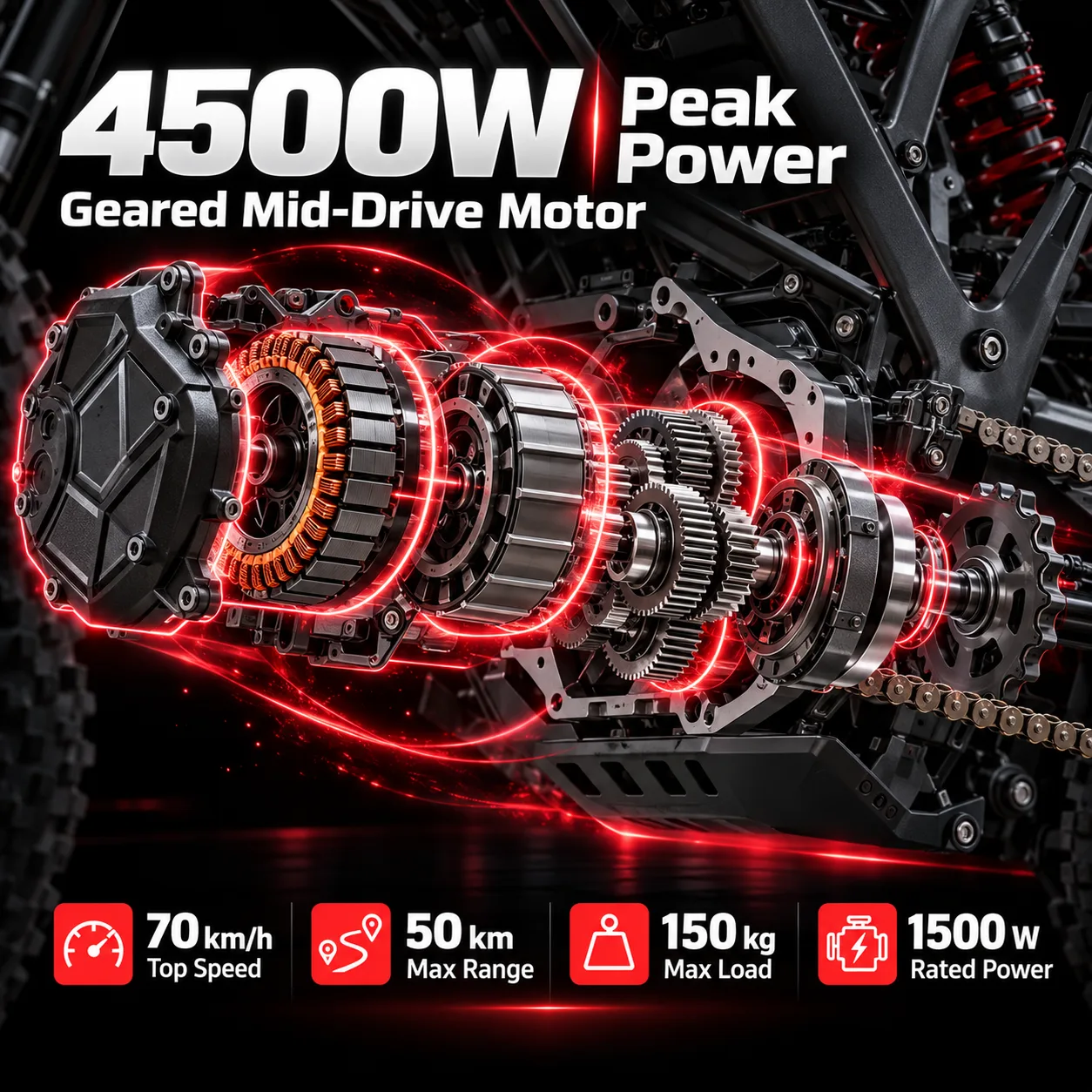

| Motor Type | Gear motor (mid-drive) |
| Rated Motor Power | 1500 W (Jiuzhou motor) |
| Maximum Power | 4500 W |
| Controller | 36–88V 60A |
| Charger | 5A battery charger (CE certified) |
| Charger Time | 6 hours (with 5A charger) |
| Display | LED center-mounted display |

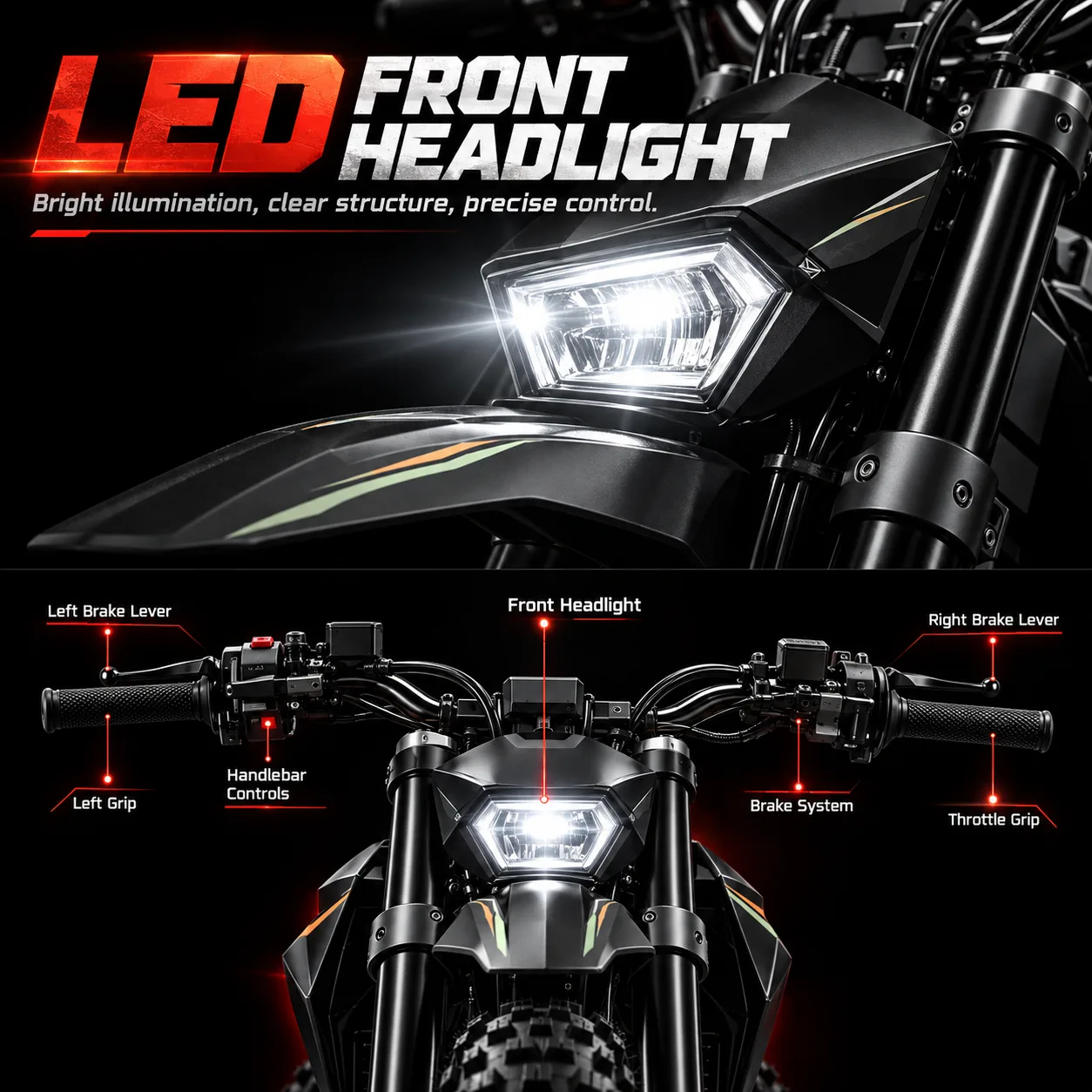

| Headlight | Front headlight |
| Frame | Aluminum alloy |
| Surface Treatment | Powder spray |
| Tyre Size Front/Rear | Front 70/100-17 / Rear 90/100-14 |

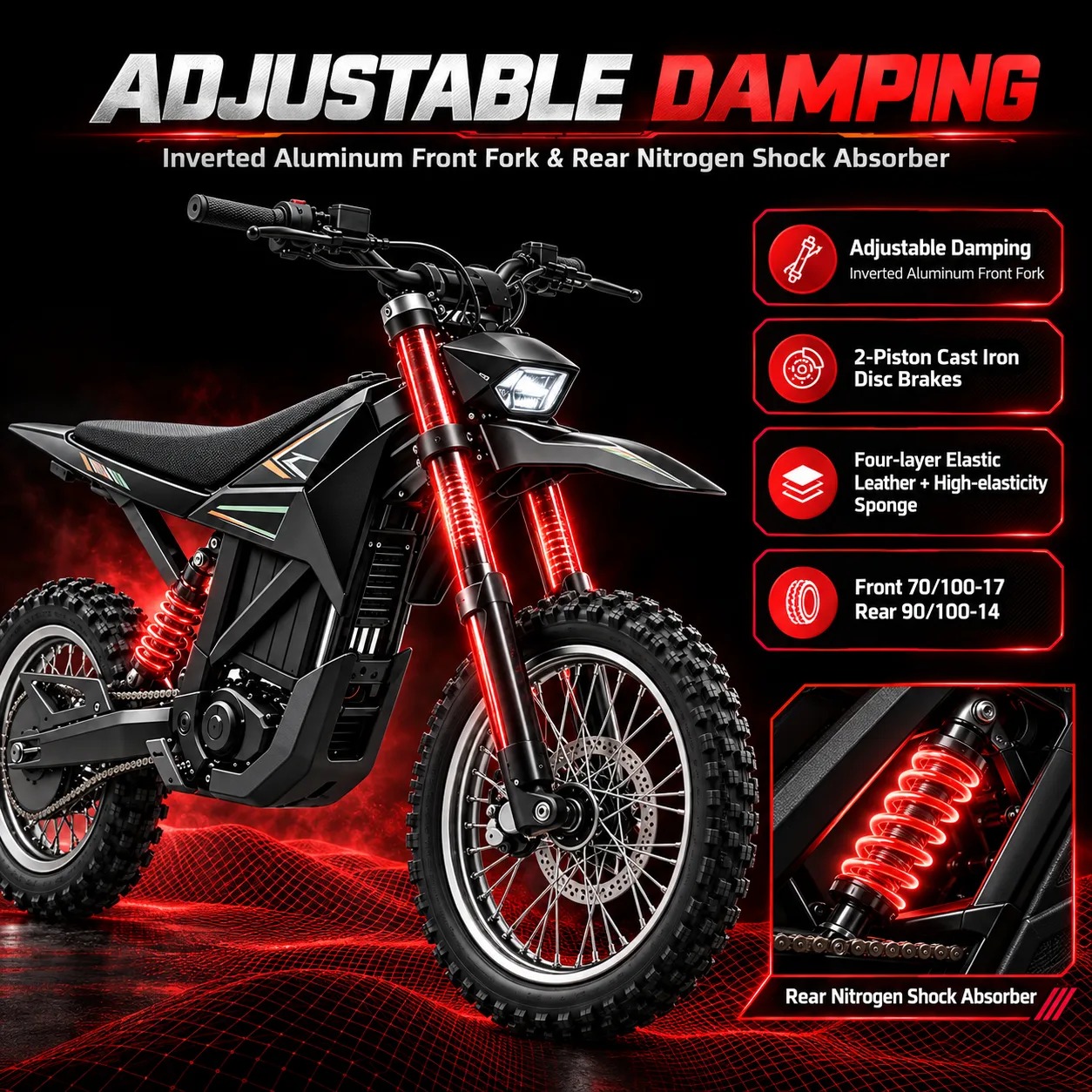

| Front Shock Absorption | Adjustable damping (inverted aluminum alloy) |
| Bluetooth Speaker | Built-in Bluetooth speaker |
Performance and Design
The T1-60-MY-21 is engineered for off-road enthusiasts and utility applications. Its 1500W mid-drive gear motor, paired with a 60V24Ah LG lithium battery, provides reliable power for up to 50 km on a single charge. The high ground clearance of 370 mm and a climbing capability of at least 65 degrees allow it to conquer steep inclines and rough trails with ease.
The aluminum alloy frame ensures a lightweight yet sturdy structure, while the powder-coated finish offers corrosion resistance. Riders can enjoy a comfortable experience with adjustable front shock absorption and a seat height of 860–870 mm. The inclusion of a Bluetooth speaker and a center-mounted LED display adds convenience and entertainment to every ride.
Safety and Compliance
The T1-60-MY-21 comes with a CE-certified 5A charger, ensuring safe and efficient charging. The battery is designed to retain at least 80% capacity after 700 cycles, reflecting long-term reliability. With a maximum loading capacity of 120 kg, this electric motorcycle is suitable for a wide range of riders and cargo needs.
For more information about the T1-60-MY-21 or to discuss your specific requirements, please contact Yongkang Komoshi Technology Co., Ltd.
